Husqvarna R316TsX AWD Residential Ride-On Front Mower

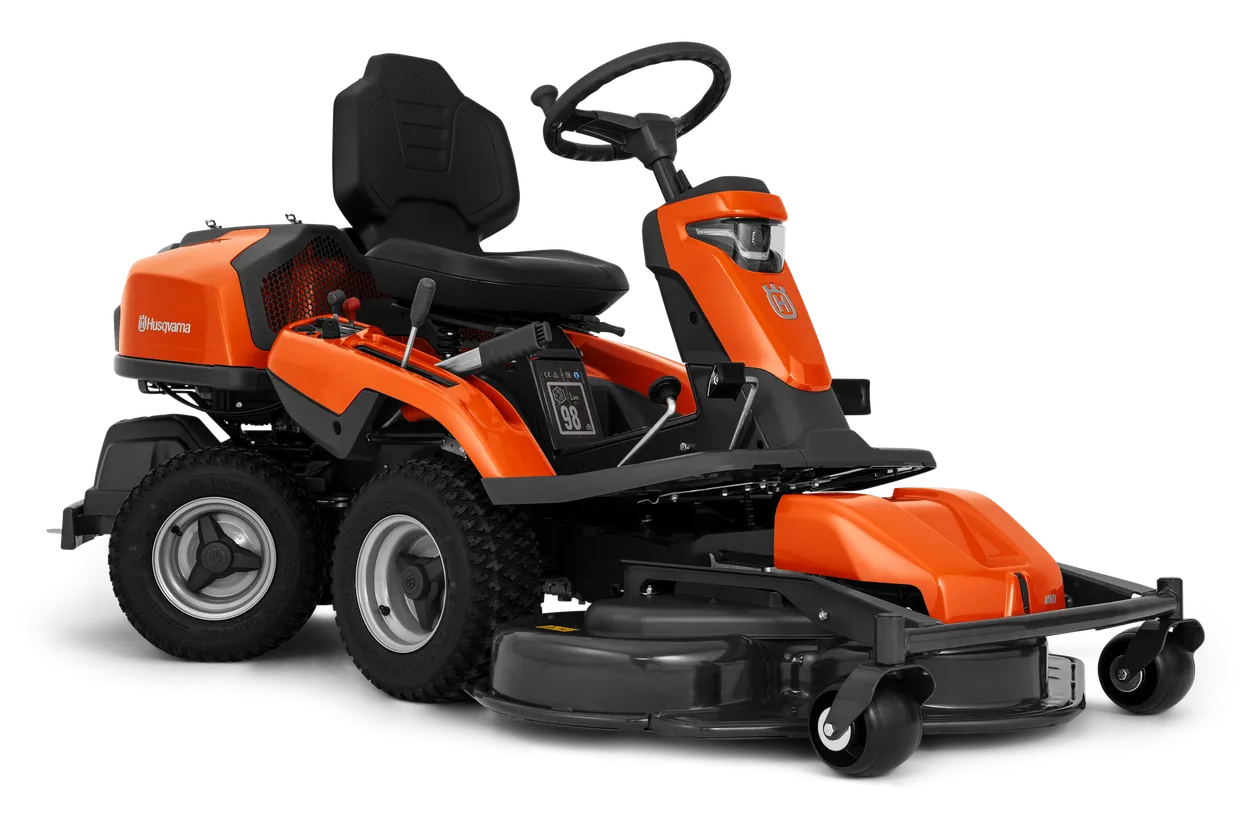

Product image 1
1 / 9
+4

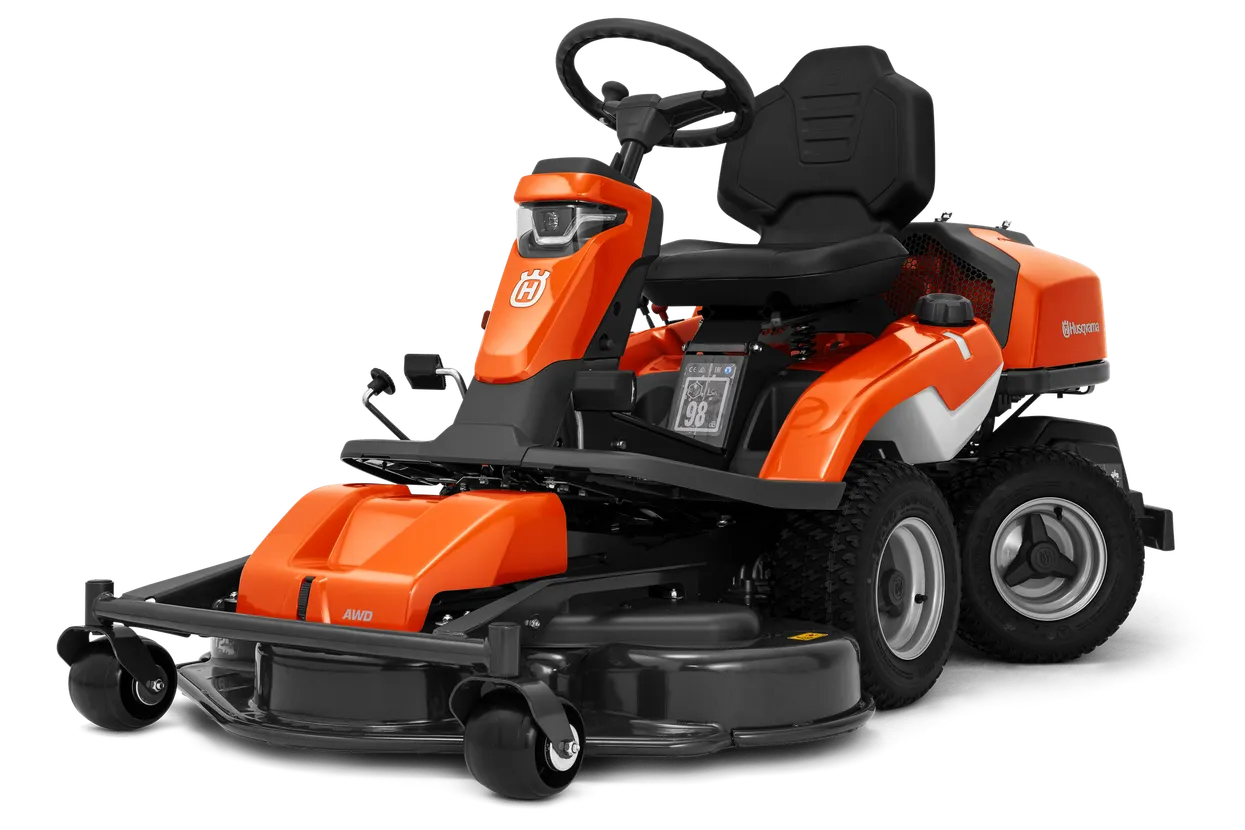

Husqvarna R316TsX AWD Residential Ride-On Front Mower

Versatile all-wheel drive Rider for year-round use

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth®

Upgrade to a 5-Year Warranty with our 4-Stroke Ride-On Warranty Add-On! Simply add to your cart in the same transaction, and get upgraded to a 5 Year Domestic Warranty! Terms and Conditions apply.


Highlights

  • Petrol Powered Kawasaki Motor
  • Net power 9.6 kW
  • Cutting width min-max 94 - 112 cm
  • Uncut circle 30 cm

Husqvarna R 316TsX AWD Front Mower Features

Adjustable Steering Wheel
The steering wheel can be easily adjusted to suit different operators, providing a more comfortable driving position and reducing fatigue during long mowing sessions.

HMI Display
The intuitive Human Machine Interface (HMI) display provides clear machine information, operating status, and service reminders, keeping you informed while you work.

Attachment Frame
Integrated attachment frame allows quick connection of a wide range of Husqvarna accessories, making the Rider a true year-round machine.

Combi Cutting Deck
Compatible with Husqvarna Combi cutting decks, allowing you to choose between BioClip® mulching for lawn fertilisation or rear discharge for tackling longer grass.

Power Steering
Power-assisted steering makes manoeuvring effortless, reducing steering effort and improving comfort, especially when working for extended periods.

Comfortable Driver's Position
Ergonomically designed seating position with easy-to-reach controls provides excellent comfort and visibility while mowing.

Dual LED Lights
Bright front and rear LED lights improve visibility in low-light conditions, allowing you to work safely earlier in the morning or later in the evening.

Front-Mounted Cutting Deck
The front-mounted deck provides an unobstructed view of the cutting area, making it easy to mow under shrubs, around trees, and along edges with precision.

Articulated Steering
Husqvarna's articulated steering system gives an extremely tight turning radius, allowing the rear wheels to follow the front for exceptional manoeuvrability around obstacles.

All-Wheel Drive (AWD)
Automatic all-wheel drive delivers outstanding traction on slopes, wet grass, and uneven terrain, providing maximum control in demanding conditions.

Service Position
The cutting deck tilts into its service position for quick and easy cleaning, blade changes, and routine maintenance.

Husqvarna Connect
Bluetooth® connectivity with the Husqvarna Connect app provides access to manuals, maintenance reminders, operating information, and spare parts support directly from your smartphone.



Specifications

TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Engine

Power/fuel type
Petrol

Net power at preset rpm Energy

1
9.7 kW

Net power at preset rpm
3,100 rpm

Engine brand
Kawasaki

Motor/engine manufacturer
Kawasaki

Engine name
FS481V

Cylinder displacement
603 cm³

Cylinders
2

Engine cooling
Air

Engine lubrication type
Full pressure

Oil filter
Yes
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Emission

Exhaust emissions (CO₂ EU V)

2
851 g/kWh
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Battery

Battery capacity
24 Ah

Battery chemistry
Lead-Acid

Battery Weight
7.2 kg

Battery brand
Global
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Cutting deck

Uncut circle
30 cm

Cutting width, min
94 cm

Cutting width, max
112 cm

Cutting height min
25 mm

Cutting height max
75 mm

Blade engagement
Automatic
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Dimensions

Tyre dimensions, front
170/60-8

Tyre dimensions, rear
170/60-8

Wheelbase
88.7 cm

Ground clearance
90 mm

Base machine, length
200.8 cm

Base machine, width
88.3 cm

Base machine, height
118.1 cm

Gross weight towed

3
125 kg

Weight (excl. cutting equipment)
251 kg
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Drive system

PTO (Power Take Off)
Belt Drive

Transmission type
Hydrostatic

Drive method
Dual pedal-operation

Speed forward max
9 km/h

Speed reverse max
6 km/h
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Equipment

Seat suspension
Yes

Seat type
Premium

Hour meter type
Digital

Seat material
Vinyl

Seat back height
High

Foldable seat
Yes

Steering wheel type
Ergonomic - soft grip

Parking brake, type
Disc
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Vibration

Vibration level steering wheel
2.5 m/s²

Vibration level seat
0.7 m/s²
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Sound and noise

Sound pressure level at operators ear
87 dB(A)

Sound power level, guaranteed (LWA)
99 dB(A)

Sound power level, measured
98 dB(A)

Versatile all-wheel drive Rider for year-round use

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth®

Upgrade to a 5-Year Warranty with our 4-Stroke Ride-On Warranty Add-On! Simply add to your cart in the same transaction, and get upgraded to a 5 Year Domestic Warranty! Terms and Conditions apply.


Highlights

  • Petrol Powered Kawasaki Motor
  • Net power 9.6 kW
  • Cutting width min-max 94 - 112 cm
  • Uncut circle 30 cm

Husqvarna R 316TsX AWD Front Mower Features

Adjustable Steering Wheel
The steering wheel can be easily adjusted to suit different operators, providing a more comfortable driving position and reducing fatigue during long mowing sessions.

HMI Display
The intuitive Human Machine Interface (HMI) display provides clear machine information, operating status, and service reminders, keeping you informed while you work.

Attachment Frame
Integrated attachment frame allows quick connection of a wide range of Husqvarna accessories, making the Rider a true year-round machine.

Combi Cutting Deck
Compatible with Husqvarna Combi cutting decks, allowing you to choose between BioClip® mulching for lawn fertilisation or rear discharge for tackling longer grass.

Power Steering
Power-assisted steering makes manoeuvring effortless, reducing steering effort and improving comfort, especially when working for extended periods.

Comfortable Driver's Position
Ergonomically designed seating position with easy-to-reach controls provides excellent comfort and visibility while mowing.

Dual LED Lights
Bright front and rear LED lights improve visibility in low-light conditions, allowing you to work safely earlier in the morning or later in the evening.

Front-Mounted Cutting Deck
The front-mounted deck provides an unobstructed view of the cutting area, making it easy to mow under shrubs, around trees, and along edges with precision.

Articulated Steering
Husqvarna's articulated steering system gives an extremely tight turning radius, allowing the rear wheels to follow the front for exceptional manoeuvrability around obstacles.

All-Wheel Drive (AWD)
Automatic all-wheel drive delivers outstanding traction on slopes, wet grass, and uneven terrain, providing maximum control in demanding conditions.

Service Position
The cutting deck tilts into its service position for quick and easy cleaning, blade changes, and routine maintenance.

Husqvarna Connect
Bluetooth® connectivity with the Husqvarna Connect app provides access to manuals, maintenance reminders, operating information, and spare parts support directly from your smartphone.



Specifications

TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Engine

Power/fuel type
Petrol

Net power at preset rpm Energy

1
9.7 kW

Net power at preset rpm
3,100 rpm

Engine brand
Kawasaki

Motor/engine manufacturer
Kawasaki

Engine name
FS481V

Cylinder displacement
603 cm³

Cylinders
2

Engine cooling
Air

Engine lubrication type
Full pressure

Oil filter
Yes
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Emission

Exhaust emissions (CO₂ EU V)

2
851 g/kWh
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Battery

Battery capacity
24 Ah

Battery chemistry
Lead-Acid

Battery Weight
7.2 kg

Battery brand
Global
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Cutting deck

Uncut circle
30 cm

Cutting width, min
94 cm

Cutting width, max
112 cm

Cutting height min
25 mm

Cutting height max
75 mm

Blade engagement
Automatic
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Dimensions

Tyre dimensions, front
170/60-8

Tyre dimensions, rear
170/60-8

Wheelbase
88.7 cm

Ground clearance
90 mm

Base machine, length
200.8 cm

Base machine, width
88.3 cm

Base machine, height
118.1 cm

Gross weight towed

3
125 kg

Weight (excl. cutting equipment)
251 kg
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Drive system

PTO (Power Take Off)
Belt Drive

Transmission type
Hydrostatic

Drive method
Dual pedal-operation

Speed forward max
9 km/h

Speed reverse max
6 km/h
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Equipment

Seat suspension
Yes

Seat type
Premium

Hour meter type
Digital

Seat material
Vinyl

Seat back height
High

Foldable seat
Yes

Steering wheel type
Ergonomic - soft grip

Parking brake, type
Disc
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Vibration

Vibration level steering wheel
2.5 m/s²

Vibration level seat
0.7 m/s²
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)
970 54 29‑10
Sound and noise

Sound pressure level at operators ear
87 dB(A)

Sound power level, guaranteed (LWA)
99 dB(A)

Sound power level, measured
98 dB(A)
Select Size
From $5,491.15

Original: $15,689.00

-65%
Husqvarna R316TsX AWD Residential Ride-On Front Mower—

$15,689.00

$5,491.15
